INFILED XII SERIES 1.9

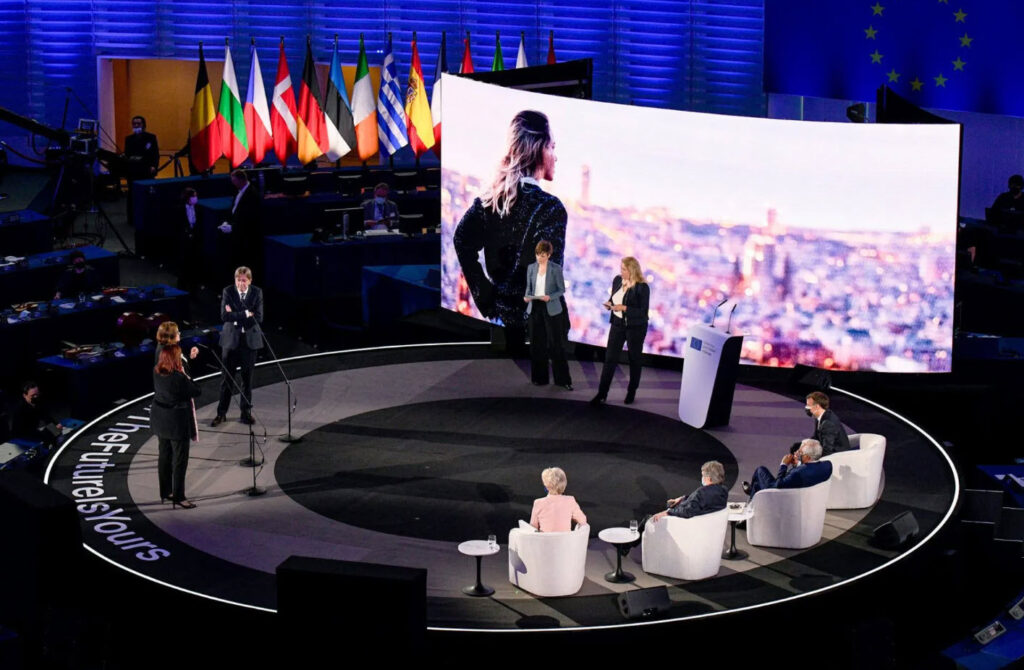

Boost your creativity with the INFiLED XII Series 1.9! Let your imagination light up the possibilities and transform your next event with a custom designed LED wall that scales to any size and shape.
-
Seamless, concave, and convex curves up to ±30°.
-
Custom curve capability at every 5° with seven position adjustments.
-
Wide horizontal and vertical viewing angles up to 160° for enhanced visual performance and color uniformity.
TECH SPECS
| Pixel Pitch | 1.95mm |
| Physical Density | 262,144 pixels/meters (squared) |
| LED Arrangement | 3 IN 1 SMD |
| Module Dimensions | 500x125mm |
| Module Resolution | 256×64 pixels |
| Cabinet Dimensions | 500x500x76mm |
| Cabinet Resolution | 256×256 pixels |
| Cabine Weight | 17.5 lbs |
| Max Power Consumption | 480 w/meter (squared) |
| Avg Power Consumption | 160 w/meter (squared) |
| Viewing Angle | 160°/160° |
| Operating Power Source | 100-240V AC 50-60Hz |
| Operating Temperature | -10°C~+45°C |
| Refresh Rate | < 3,840Hz |
| IP Rating | IP30 |
| Signal Output Source | DVI, HDMI, DP, MINI DP, VGA, SDI, HD SDI |
| Verification | CE, FCC, ETL, ROHS, REACH, WEEE in processing |
