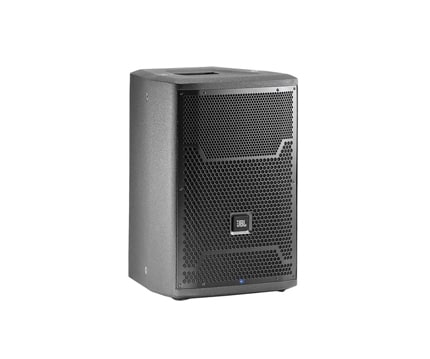

JBL PRX715
Description
The 2-way 15″ offers the perfect balance between size and performance. The PRX715 truly is exceptional; it’s small, light weight, versatile and powerful. The PRX715 is comprised of a 15″ 275G Differential Drive® woofer, a 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, and a neodymium compression driver mounted to a 90° by 50° horn, all driven by a 1500 watt Class-D power amplifier.
Request a RentalProduct Details
- Maximum SPL Output 136 db Peak
- 15″ Differential Drive® low-frequency driver for low-distortion and higher SPL
- 1.5″ diameter next generation JBL neodymium compression driver
- 1500W (dual 750 watt) highly efficient Class-D amplifier
- Optimized EQ for monitor or front-of-house applications
- DSP input section, crossover, dynamic limiting, component optimization, selectable system EQ
Technical Specifications
| System Type | Self Powered 15", two-way, bass-reflex |
| Maximum Sound Pressure Level (SPL) | 136 dB |
| Frequency Range (-10 dB)-Main | 42.9 Hz – 19.5 kHz |
| Frequency Range (-10 dB)-Monitor | 43.6 Hz – 19.3 kHz |
| Frequency Response (±3 dB)-Main | 58.1 Hz – 17.2 kHz |
| Frequency Response (±3 dB)-Monitor | 60.7 Hz – 16.7 kHz |
| Input Connectors | 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input |
| EQ | User selectable presets for Main or Monitor position |
| Power Rating | 1500W (750W x 2) |
| AC Power Input | 100V – 240V ∼ 50/60 Hz |
| Weight | 58.0 lb |
| Dimensions | 28.13 in x 17.52 in x 14.12 in |
